ZB4BW7L3741 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC17344557
Category:
Switch Accessory
Datasheet:
Datasheet 3D Model
Description:
Electric XB4 Series, Green, Red Push Button Head, Green, I/O, Red, 22mm Cutout
Stock Locations:
Availability:
33 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 41.91

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

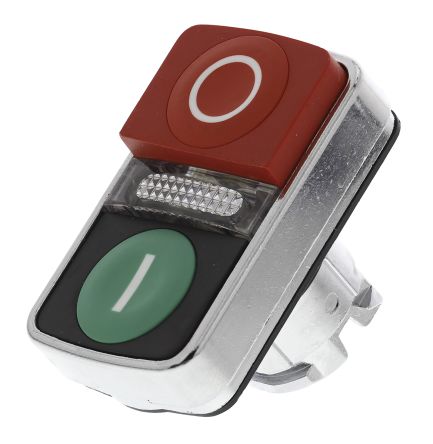

The ZB4BW7L3741 is a Ø22mm rectangular illuminated double-headed Pushbutton Switch Head for harmony XB4 series switches. This head has chromium plated metal bezel with integral LED, 1 flush - 1 projecting push-buttons with white "I" on green flush and white "O" on red projecting spring return operator and one central pilot light.
Class I Conforming to IEC 61140 protection
IP69K/IP66/IK05 Protection rating
NEMA 4X/13 Protection rating
-25 to 70°C Operating ambient air temperature range
1000000 Cycles mechanical durability

Show

ZB4BW7L3741 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
	Show
Color	Green
Operating Temperature	-25℃ ~ 70℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
