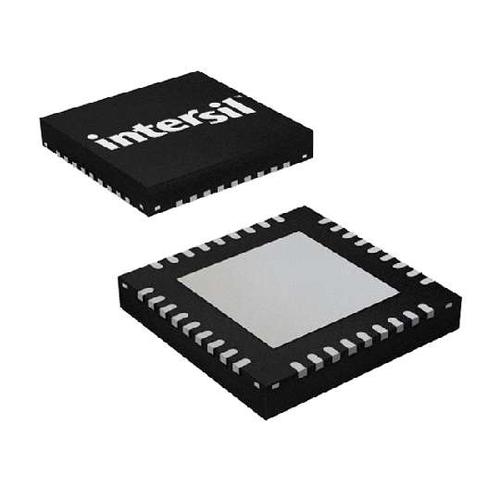

Image is for your reference only,please check specifications for details
- ZL6105ALAF - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC61683796
-
Category:DC to DC Converter
-
Package:QFN-36
-
Datasheet:Datasheet 3D Model
-
Description:INTERSIL ZL6105ALAF DC-DC Controller, Auto Compensation, 3V to 14V, 1 Output, Synchronous Buck, 1.4MHz, QFN-36
-
Stock Locations:
-
Availability:1,100 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.19
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
ZL6105ALAF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 36 Pin |
| Case/Package | QFN-36 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Outputs | 1 Output |
| Output Voltage | 0.54V ~ 5.5V |
| Output Current | 40 A |
| Switching Frequency | 200kHz ~ 1.4MHz |
| Duty Cycle | 95 % |
| Input Voltage (Max) | 14 V |
| Input Voltage (Min) | 3 V |
| Output Current (Min) | 40 A |
| Maximum Duty Cycle | 0.95 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 14V |
| Supply Voltage (Max) | 14 V |
| Supply Voltage (Min) | 3 V |
| Input Voltage | 3V ~ 14V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
