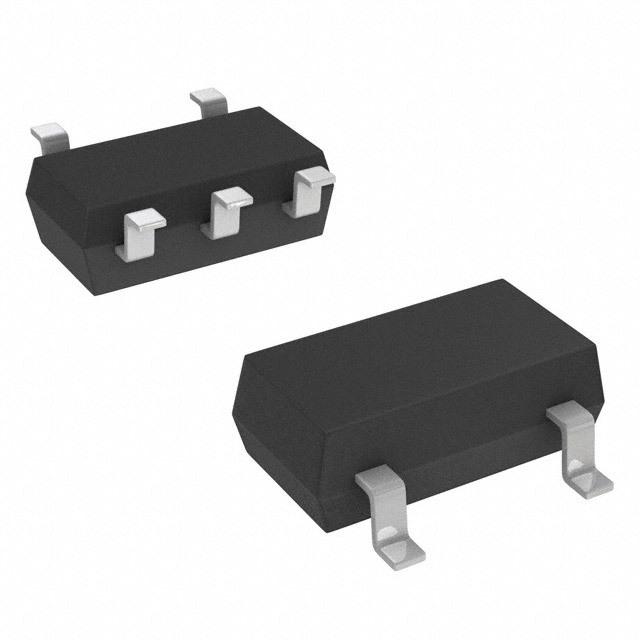

Image is for your reference only,please check specifications for details

ZXCT1081E5TA - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC11233600
Category:
Power Management IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
ZXCT1080 Series 500kHz 80uA 4.5 to 12V High-Side Current Monitor - SOT-23-5
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.53

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Efficiency is important when dealing with power distribution. The ZXCT1081E5TA power supply controller from Diodes Zetex regulates and displays power consumption data. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature range of -40 °C to 125 °C.

Show

ZXCT1081E5TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	4.50V (min)
Number of Outputs	1 Output
Output Current	1 mA
Number of Positions	5 Position
Input Current	60 µA
Power Dissipation	300 mW
Quiescent Current	80 µA
Bandwidth	500 kHz
Input Voltage (Max)	40 V
Input Voltage (Min)	3 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	300 mW
Accuracy	±3 %
Supply Voltage	4.5V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	4.5 V
Input Voltage	3V ~ 40V
	Show
Size-Height	1.1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
