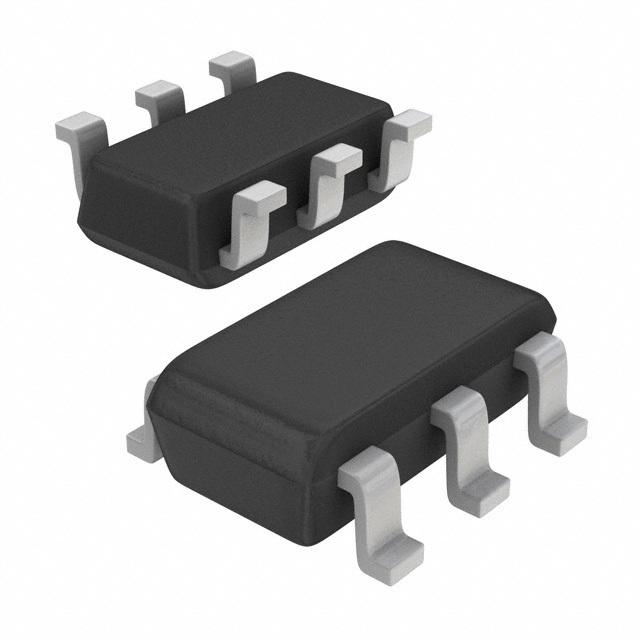

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZXTD4591E6TA is a NPN-PNP complementary medium power Bipolar Transistor Array offers 1 and -1A continuous collector current respectively. It is suitable for MOSFET gate driver, low power motor drive and DC-to-DC converters.

Show

ZXTD4591E6TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Frequency	150 MHz
Current Rating	1 A
Power Rating	1.1 W
Number of Positions	6 Position
Polarity	NPN, PNP
Power Dissipation	1.1 W
Gain Bandwidth Product	150 MHz
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	1A
hFE Min	100 @500mA, 5V
Input Power (Max)	1.1 W
DC Current Gain (hFE)	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	1700 mW
	Show
Size-Length	3 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Material	Silicon
Weight	0.0002399503796 kg
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
