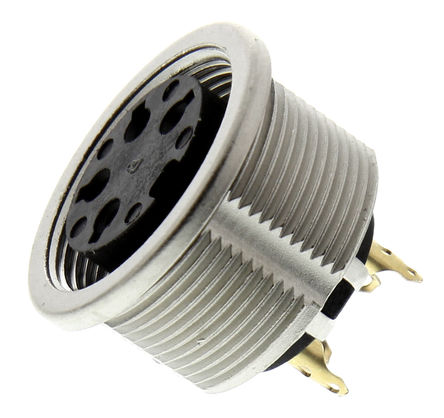

Image is for your reference only,please check specifications for details

Updated at 16/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 0304 04 is a 4-pole Circular Connector, 03 series, with threaded joints, polyamide insulation, pre-coppered and nickel-plated zinc die-cast housing, silver-plated brass contacts, front mounting. This 03 series chassis socket is suitable for use with 0331, 0332, 033200, 0332-1, 0365 and 036500 plugs. Designed according to IEC 61076-2-106 standards.
5A Current rating
1500V Impulse voltage rating
IP68 Protection rating
* >10GR Insulation resistance

Show

0304 04 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder, Panel
Number of Pins	4 Pin
Number of Contacts	4 Contact
Gender	Female
Contact Plating	Silver
Current Rating	5 A
Insulation Resistance	1000 MΩ
Current Rating (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	250 VAC
Voltage Rating	250 VAC
Maximum Contact Resistance (Max)	5 mΩ
	Show
Contact Material	Brass
Packaging	Box
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
