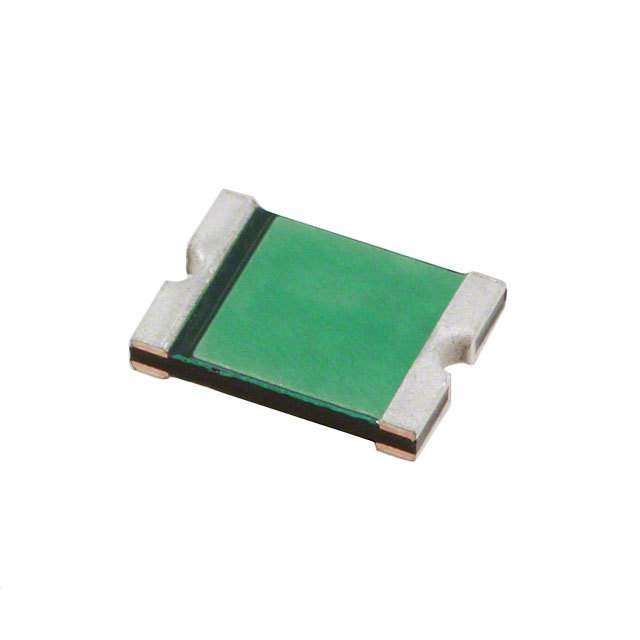

Image is for your reference only,please check specifications for details
- 0ZCG0150BF2C - BEL Fuse
-
Manufacturer:BEL Fuse
-
ManyChip's Part#:MC7450740
-
Category:Fuse
-
Package:1812
-
Datasheet:Datasheet 3D Model
-
Description:Самовосстанавливающийся предохранитель PTC, 1,5 А (удержание), 3 А (срабатывание), 24 В пост. тока, 100 А, 1 Вт, 1,5 с, 0,04 Ом, SMD, контактные площадки для пайки, корпус 1812, лента и катушка.
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- При перегрузке по току или коротком замыкании ваша цепь может возобновить нормальную работу с помощью этого устройства с положительным температурным коэффициентом 0ZCG0150BF2C от Bel Fuse, без необходимости замены предохранителей. Это устройство имеет максимальный номинальный ток 100 А. Этот самовосстанавливающийся предохранитель имеет минимальную рабочую температуру -40 °C и максимальную 85 °C. Он имеет 2 вывода. Устанавливайте ваш самовосстанавливающийся предохранитель на печатную плату с использованием технологии поверхностного монтажа для достижения наилучших результатов. Это изделие имеет размеры 4,73 (макс.) мм в длину, 1,55 (макс.) мм в высоту и 3,41 (макс.) мм в глубину.
0ZCG0150BF2C Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Time to Trip | 1.5 s |
| Power Dissipation | 1 W |
| Resistance | 0.12 Ω |
| Holding Current | 1.5 A |
| Trip Current | 3 A |
| Current Rating (Max) | 100 A |
| Holding Current (Max) | 1.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 24 VDC |
| Voltage Rating | 24 VDC |
| Operating Voltage (Max) | 24 V |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 3.2 mm |
| Size-Height | 1.55 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
