Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 2 Pin |

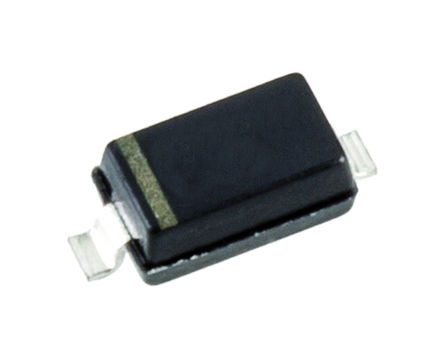

Case/Package | SOD-123 |
Voltage Rating (DC) | 30.0 V |
Current Rating | 500 mA |
Halogen Free Status | Halogen Free |
Output Current | ≤500 mA |
Load Current | 0.5 A |
Number of Positions | 2 Position |
Forward Voltage | 0.43 V |
Polarity | Standard |
Thermal Resistance | 150℃/W (RθJL) |
Forward Current | 500 mA |
Max Forward Surge Current (Ifsm) | 5.5 A |
Maximum Forward Voltage (Max) | 430 mV |
Forward Current (Max) | 500 mA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -65 ℃ |
Junction Temperature (Max) | 125 ℃ |
Show | |
Size-Length | 2.69 mm |
Size-Width | 1.6 mm |
Size-Height | 1.12 mm |
Operating Temperature | -65℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
