Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

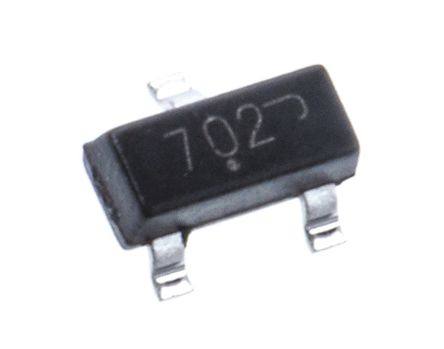

Case/Package | SOT-23-3 |
Voltage Rating (DC) | 60.0 V |
Current Rating | 115 mA |
Power Rating | 0.225 W |
Halogen Free Status | Halogen Free |
Number of Channels | 1 Channel |
Number of Positions | 3 Position |
Drain to Source Resistance (on) (Rds) | 7.5 Ω |
Polarity | N-Channel |
Power Dissipation | 200 mW |
Threshold Voltage | 2.5 V |
Drain to Source Voltage (Vds) | 60 V |
Breakdown Voltage (Drain to Source) | 60 V |
Breakdown Voltage (Gate to Source) | ±20.0 V |
Continuous Drain Current (Ids) | 115 mA |
Maximum Forward Voltage (Max) | 1.5 V |
Input Capacitance (Ciss) | 50pF @25V(Vds) |
Input Power (Max) | 225 mW |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 225mW (Ta) |
Show | |
Size-Length | 2.9 mm |
Size-Width | 1.3 mm |
Size-Height | 0.94 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Cut Tape (CT) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
ECCN Code | EAR99 |
