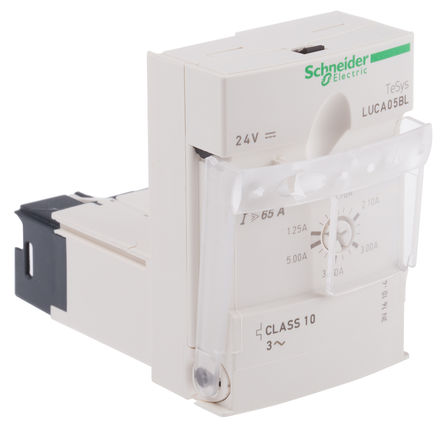

Image is for your reference only,please check specifications for details

LUCA05BL - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC75894303
Category:
Motors, Drive
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC LUCA05BL Пускатель двигателя, серия LUCA, блок управления, трехфазный, 3 кВт, 5 А, 20 В пост. тока – 27 В пост. тока
Stock Locations:
Availability:
32 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 84.22

Updated at 14/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Блоки управления содержат твердотельное реле перегрузки и источник питания для управления пускателем двигателя U-Line.

Show

LUCA05BL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Supply Voltage (DC)	20.0V (min)
Current Rating	5 A
Power Rating	3 kW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	690 VAC
Supply Voltage	24 VDC
Supply Voltage (Max)	27 VDC
Supply Voltage (Min)	20 VDC
	Show
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Design
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
