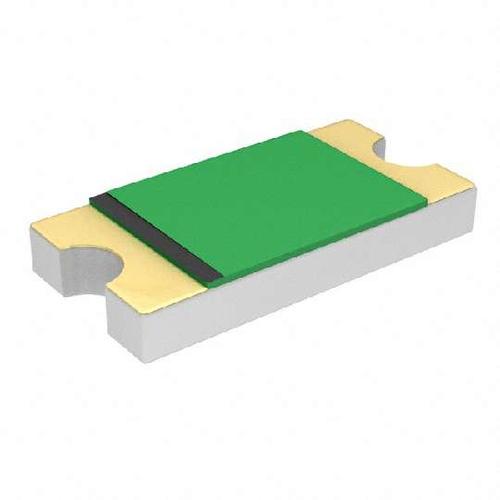

Image is for your reference only,please check specifications for details
- 0ZCJ0050FF2G - BEL Fuse
-
Manufacturer:BEL Fuse
-
ManyChip's Part#:MC6274430
-
Category:Fuse
-
Package:1206
-
Datasheet:Datasheet 3D Model
-
Description:PTC самовосстанавливающийся предохранитель 0,5A (удержание) 1A (срабатывание) 8 В пост. тока 100A 0,4 Вт 0,1 с 0,15 Ом SMD контактная площадка 3,5 x 1,8 x 0,55 мм T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Этот PTC самовосстанавливающийся предохранитель 0ZCJ0050FF2G от Bel Fuse является альтернативой замене перегоревших предохранителей. Это устройство имеет номинальный максимальный ток 100 А. Этот самовосстанавливающийся предохранитель имеет минимальную рабочую температуру -40 °C и максимальную 85 °C. Он имеет 2 вывода. Монтируйте ваш самовосстанавливающийся предохранитель на печатную плату с использованием технологии поверхностного монтажа для достижения наиболее эффективных результатов.
0ZCJ0050FF2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3216 |
| Case/Package | 1206 |
| Time to Trip | 0.1 s |
| Power Dissipation | 0.4 W |
| Resistance | 0.7 Ω |
| Holding Current | 0.5 A |
| Trip Current | 1 A |
| Current Rating (Max) | 100 A |
| Holding Current (Max) | 500 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 8 VDC |
| Voltage Rating | 8 VDC |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.55 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
