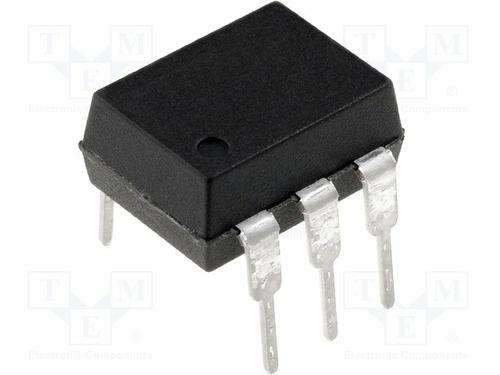

Image is for your reference only,please check specifications for details

TIL111 - ISOCOM Components
Manufacturer:
ISOCOM Components
ManyChip's Part#:
MC38933496
Category:
Optocoupler, Optoisolator
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
ISOCOM TIL111 Optocoupler, Transistor Output, 1Channel, DIP, 6Pins, 60mA, 5.3kV, 20%
Stock Locations:
Availability:
82 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.38

Updated at 23/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TIL111 is a 1-channel 6-pin Optically Coupled Isolator consist of infrared light emitting diode and NPN silicon phototransistor. It is suitable for industrial systems controllers, signal transmission between systems of different potentials and impedances.
60mA Forward current
6V Reverse voltage
200mW Total power dissipation

Show

TIL111 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP
Output Voltage	30.0 V
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.2 V
Input Current	16.0 mA
Isolation Voltage	5.3 kV
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	60 mA
Fall Time (Max)	10 µs
Fall Time (Max)	10 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
