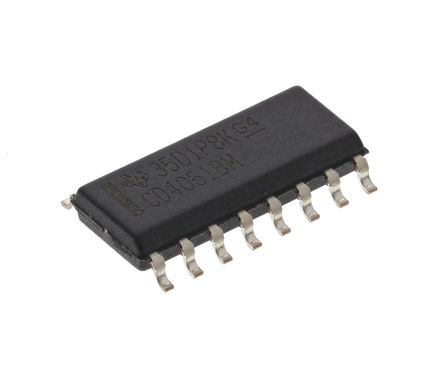

- CD4051BM - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC286012
-
Category:Multiplexer IC
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:Analog Multiplexer / Demultiplexer, 8:1, 1 Circuit, 240Ω, 80nA, 3V to 20V, SOIC-16
-
Stock Locations:
-
Availability:627 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.73
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CD4051BM is a single 8-channel Analog Multiplexer having three binary control inputs, A, B and C and an inhibit input. The three binary signals select 1 of 8 channels to be turned on and connect one of the 8 inputs to the output. The device is digitally-controlled analog switches having low ON impedance and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD-VSS and VDD-VEE supply-voltage ranges, independent of the logic state of the control signals. When logic 1 is present at the inhibit-input terminal, all channels are off.
- 125R (typical) Low ON resistance over 15VP-P
- 18V Signal input range for VDD - VEE
- ±100pA (Typical) High OFF resistance, channel leakage at VDD-VEE = 18 V
- Logic-level conversion for digital addressing signals
- Binary address decoding on chip
- 100% Tested for quiescent current at 20V
- 1µA Maximum input current at 18V over full package temperature range, 100nA at 18V and 25°C
- Break-before-make switching eliminates channel overlap
CD4051BM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 5.00 V |
| Number of Outputs | 1 Output |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 16 Position |
| Number of Bits | 8 Bit |
| Propagation Delay Max (tpd) | 20.0 ns |
| Voltage Nodes | 5.00 V, 10.0 V, 15.0 V |
| Power Dissipation | 700 mW |
| Number of Gates | 1 Gate |
| Bandwidth | 20 Mhz |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| 3dB Bandwidth | 20 MHz |
| Supply Voltage | 3V ~ 20V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 5 V |
| Show | |
| Size-Length | 9.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
