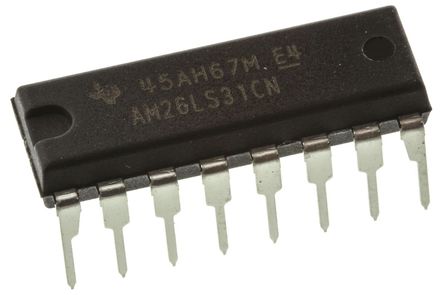

AM26LS31CN - TI
Manufacturer:
TI
ManyChip's Part#:
MC628342
Category:
Interface IC, Interface Controller
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
Quad Transmitter RS-422 16Pin PDIP Quad Transmitter RS-422 16Pin PDIP
Stock Locations:
Availability:
165 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.95

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AM26LS31CN is a quadruple differential Line Driver designed to meet the requirements of ANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. The 3-state outputs have high-current capability for driving balanced lines such as twisted-pair or parallel-wire transmission lines and they are in the high-impedance state in the power-off condition. The enable function is common to all four drivers and offers the choice of an active-high or active-low enable (G, G) input. Low-power Schottky circuitry reduces power consumption without sacrificing speed.
Meets or exceeds the requirements of ANSI TIA/EIA-422-B and ITU
TTL Compatible
Complementary outputs
High output impedance in power-off conditions
Complementary output-enable inputs
ESD sensitive device, take proper precaution while handling the device.

Show

AM26LS31CN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	4.75V (min)
Output Current	≥20.0 mA
Supply Current	80 mA
Number of Positions	16 Position
Power Dissipation	1.38 W
Data Rate	10.0 Mbps
Drivers Per Package	4
Output Voltage (Max)	3.2 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
HK STC License	NLR
