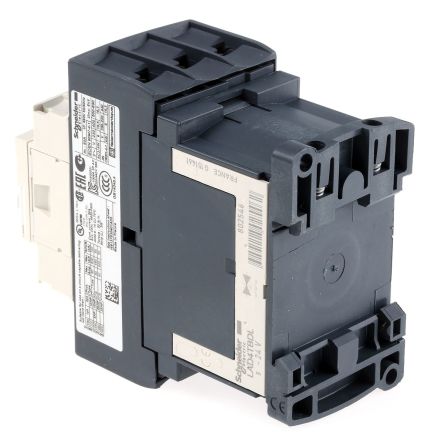

Image is for your reference only,please check specifications for details
- LC1D38BD - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC19822157
-
Category:Industrial Relay
-
Datasheet:Datasheet 3D Model
-
Description:Contactor, Non-Reversing, 24VDC Coil, 38A, 3Pole, DIN Rail, TeSys D
-
Stock Locations:
-
Availability:8 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 62.76
Updated at 03/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **TeSys D Series – Contactors & Reversing Contactors up to 150A for inductive motor and 250A for resistive loads:**
- Reliable and long-lasting, TeSys D is the ultimate choice for demanding or wide power range applications.*TeSys D contactor** offers you quick simple setup, while maintaining a compact size of 45 (9 to 38A) and 55 mm (40 to 65 A) as well as compliance with international standards. From 40 to 65 A versions are equipped with EverLink, this patented terminal technology, ENSURES a permanent tightening quality even in the event of conductor creep.
- **Features:**
- * The TeSys D contactors is the largest selling line of contactors in the world. They offer multi-standard compact solution, high reliability with long mechanical and electrical life and the most complete line of accessories in the industry. TeSys D contactors is the perfect choice for any applications.
- * TeSys D contactors leverage on 100 years of experience and innovation to control your motors.
- * New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil.
- * TeSys D Green contactor simplify your maintenance services with 90% less references needed.
- * TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
- **Safety:**
- * Safe and long-lasting power connection with Everlink and spring terminals
- * Suitable for safety applications thanks to mechanically linked and mirror contacts (compliant with IEC 60947-4-1 and 60947-5-1 )
- * Identification of safety chain with red cover and aux contact
- **Efficiency:**
- * Recognized high performances and quality solutions
- * Outstanding breaking/making capacity up to 20In
- * Multi-standard : IEC, UL, CCC, EAC, Marine, etc.
- **Continuity of Service:**
- * Certified type 1 and 2 coordination tables
- * Worldwide availability of products and after sales services
- **PLC Direct Connection:**
- * TeSys D is the only contactor range with full compatibility with PLC input/output from 9A to 65A.
- * TeSys D low consumption DC coil (BL references) uses only 100mA inrush and sealed from 9 to 38A –
- * New TeSys D Green (BBE coil references) is compatible with digital I/O
LC1D38BD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Power Rating | 18.5 kW |
| Contact Current Rating | 50 A |
| Coil Voltage | 24 VDC |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -5 ℃ |
| Show | |
| Size-Length | 85 mm |
| Size-Width | 45 mm |
| Size-Height | 102 mm |
| Weight | 380 g |
| Operating Temperature | -25℃ ~ 55℃ |
| RoHS | RoHS Compliant |
