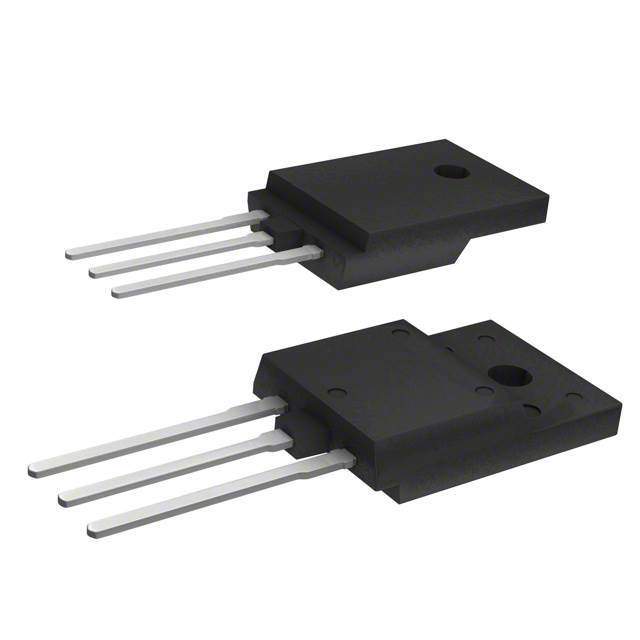

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MD2103DFX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	ISOWATT-218FX-3
Polarity	NPN
Power Dissipation	52 W
Breakdown Voltage (Collector to Emitter)	700 V
Continuous Collector Current	6A
Input Power (Max)	52 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	52000 mW
	Show
Size-Length	15.7 mm
Size-Width	5.7 mm
Size-Height	16.5 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
