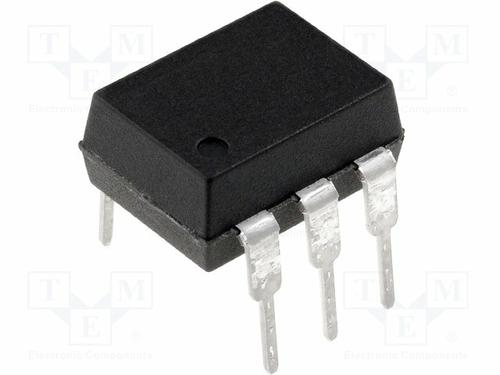

Image is for your reference only,please check specifications for details
- CNY75A - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC18241442
-
Category:Diode
-
Package:DIP-6
-
Datasheet:Datasheet 3D Model
-
Description:Vishay CNY75A DC Input Phototransistor Output Optocoupler, Through Hole, 6Pin PDIP
-
Stock Locations:
-
Availability:1,761 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.31
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CNY75A is a 1-channel 6-pin Phototransistor Output Optocoupler with base connection. It consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. It is suitable for line receiver and microprocessor system interface.
- Isolation materials according to UL94V-0
- Pollution degree 2 (DIN/VDE 0110/respectively IEC 60664)
- Low temperature coefficient of CTR
- 600VRMS Rated recurring peak voltage (repetitive)
- 1.6kV Isolation test voltage (partial discharge test voltage)
- >=0.4mm Thickness through insulation
- 5V Reverse voltage
CNY75A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Voltage Rating (DC) | 1.25 V |
| Output Voltage | 70 V |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Forward Voltage | 1.25 V |
| Input Current | 60 mA |
| Power Dissipation | 200 mW |
| Rise Time | 2.5 µs |
| Isolation Voltage | 5000 Vrms |
| Forward Current | 60 mA |
| Output Voltage (Max) | 70 V |
| Reverse Breakdown Voltage | 5 V |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 60 mA |
| Fall Time | 2.7 µs |
| Operating Temperature (Max) | 110 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
