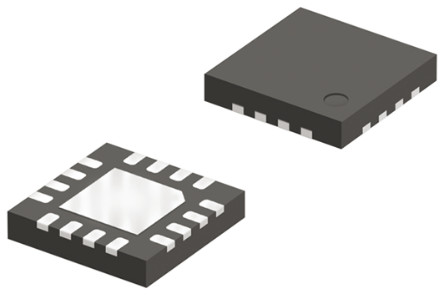

Image is for your reference only,please check specifications for details

M41T62Q6F - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC4118469
Category:
Real Time Clock IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
Real Time Clock Serial 16Byte Clock/Calendar/Alarm/Timer/Interrupt 16Pin QFN EP T/R
Stock Locations:
Availability:
10,923 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.99

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The M41T62Q6F is a low-power Serial Real-Time Clock (RTC) with 32.768kHz oscillator and eight registers is used for the clock/calendar function and are configured in binary-coded decimal (BCD) format. An additional eight registers provide status/control of alarm, 32kHz output, calibration and watchdog functions. Addresses and data are transferred serially via a 2-line, bi-directional I²C interface. The built-in address register is incremented automatically after each write or read data byte. The eight clock address locations contain the century/year/month/date/day/hour/minute/second and tenths/hundredths of a second in 24-hour BCD format. Corrections for 28, 29 (leap year), 30 and 31-day months are made automatically.
Serial real-time clock (RTC) with alarm functions
Software clock calibration, can adjust timekeeping to within ±2 parts per million
Automatic leap year compensation
ESD sensitive device, take proper precaution while handling the device.

Show

M41T62Q6F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Supply Voltage (DC)	1.30V (min)
Number of Outputs	2 Output
Number of Positions	16 Position
Clock Speed	32.8 kHz
RAM Memory Size	16 B
Power Dissipation	1000 mW
Memory Size	16 B
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	1.3V ~ 4.4V
Supply Voltage (Max)	4.4 V
Supply Voltage (Min)	1.3 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
