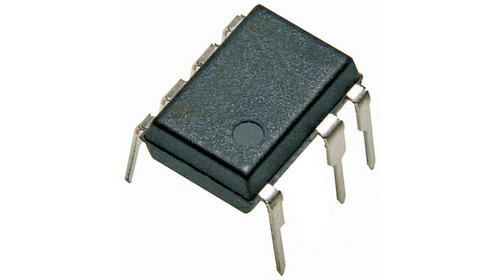

- TNY266PN - Power Integrations
-
Manufacturer:Power Integrations
-
ManyChip's Part#:MC2169900
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Switching Regulator, Current-mode, 0.56A, 140kHz Switching Freq-Max, PDIP7, 0.3INCH, LEAD FREE, PLASTIC, MS-001-AB, DIP-8
-
Stock Locations:
-
Availability:1,175 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.47
Updated at 03/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TNY266PN integrates a 700V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias winding and associated circuitry. In addition, the TNY266PN incorporates auto-restart, line undervoltage sense, and frequency jittering. An innovative design minimises audio frequency components in the simple ON/OFF control scheme to practically eliminate audible noise with standard taped/varnished transformer construction. The fully integrated auto-restart circuit safely limits output power during fault conditions such as output short circuit or open loop, reducing component count and secondary feedback circuitry cost.
- Fully integrated auto-restart for short circuit and open loop fault protection
- Built in circuitry practically eliminates audible noise with ordinary dip-varnished transformer
- Programmable line under voltage detect feature prevents power on/off glitches
- Frequency jittering dramatically reduces EMI (~10dB)
- 132kHz operation reduces transformer size
- Very tight tolerances and negligible temperature variation on key parameters
- Low component count switcher solution
- Simple ON/OFF control - no loop compensation needed
- No bias winding
- Simple design practically eliminates rework in manufacturing
- No load consumption <50mW with bias winding and <250mW without bias winding at 265VAC input
- High bandwidth provides fast turn on with no overshoot
- Current limit operation rejects line frequency ripple
- Built in current limit and thermal protection improves safety
TNY266PN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Frequency | 132 kHz |
| Supply Voltage (DC) | 265 V |
| Power Rating | 15 W |
| Number of Outputs | 1 Output |
| Output Voltage | 700 V |
| Output Current | 560 mA |
| Breakdown Voltage | 700 V |
| Supply Current | 265 µA |
| Number of Positions | 7 Position |
| Number of Regulated Outputs | 1 Output |
| Output Power | 9.5 W |
| Switching Frequency | 132 kHz |
| Duty Cycle | 65 % |
| Maximum Duty Cycle | 68 % |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 265 VAC |
| Input Voltage | 85.265 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
