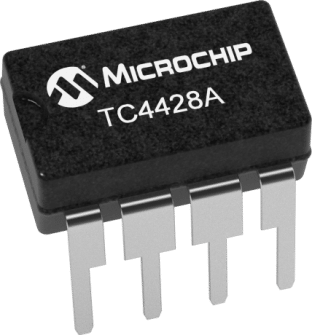

Image is for your reference only,please check specifications for details

Updated at 16/04/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC4428ACPA is a dual complementary high-speed power MOSFET Driver has highly latch-up resistant under any conditions within their power and voltage ratings. It is not subject to damage when up to 5V of noise spiking occurs on the ground pin. It can accept, without damage or logic upset, up to 500mA of reverse current being forced back into their outputs. All terminals are fully protected against electrostatic discharge (ESD) up to 4kV. The TC4428A MOSFET driver can easily charge/discharge 1000pF gate capacitances in under 30ns. This device provides low enough impedances in both the ON and OFF states to ensure the MOSFETs intended state will not be affected, even by large transients.
Matched rise, fall and delay times
7R Typical low output impedance
Latch-up protected - Will withstand 0.5A reverse current
Input will withstand negative inputs up to 5V
Pin-compatible with TC426/TC427/TC428 and TC4426/TC4427/TC4428

Show

TC4428ACPA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	4.50V (min)
Operating Voltage	4.5V ~ 18V
Rise/Fall Time	25 ns
Number of Outputs	2 Output
Output Voltage	18.0 V
Output Current	1.5 A
Supply Current	4.50 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	730 mW
Rise Time	35 ns
Output Voltage (Max)	17.975 V
Fall Time	35 ns
Fall Time (Max)	35 ns
Fall Time (Max)	35 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	730 mW
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	4.06 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
