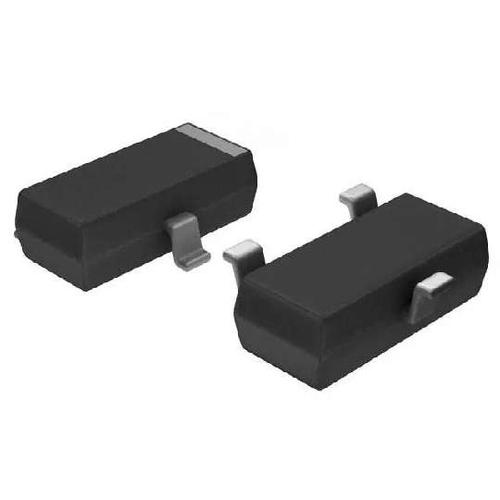

Image is for your reference only,please check specifications for details
Updated at 26/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- SST3906 Series 40 V 0.2 A SMT PNP General Purpose Transistor - SST-3
SST3906T116 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Frequency | 250 MHz |
| Power Rating | 0.35 W |
| Number of Positions | 3 Position |
| Polarity | PNP |
| Power Dissipation | 0.35 W |
| Gain Bandwidth Product | 250 MHz |
| Breakdown Voltage (Collector to Emitter) | 40 V |
| Continuous Collector Current | 0.2A |
| hFE Min | 100 @10mA, 1V |
| hFE Max | 300 |
| Input Power (Max) | 350 mW |
| DC Current Gain (hFE) | 30 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 6200 mW |
| Show | |
| Size-Width | 1.3 mm |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
