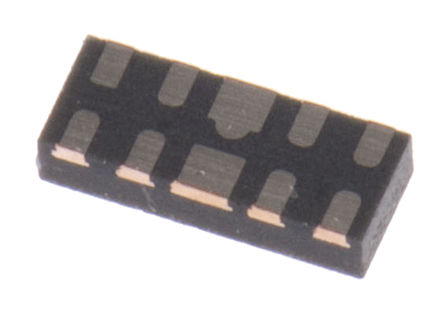

TPD4EUSB30DQAR - TI
Manufacturer:
TI
ManyChip's Part#:
MC5402640
Category:
TVS Diode
Package:
UFDFN-10
Datasheet:
Datasheet 3D Model
Description:
4Channel ESD Solution for SuperSpeed (6Gbps) USB 3Interface 10-USON -40℃ to 85℃
Stock Locations:
Availability:
2,474 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD4EUSB30DQAR is an ESD Protection Device for super-speed USB 3.0 interface. It is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (contact). It offers 5A (8/20µs) peak pulse current ratings per IEC 61000-4-5 (surge) specification.
Supports USB 3.0 data rates (5Gbps)
0.7pF Low capacitance
0.6R Dynamic resistance
Flow-through pin mapping
100nA Maximum IO leakage current
-40 to 85°C Operating temperature range

Show

TPD4EUSB30DQAR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UFDFN-10
Supply Voltage (DC)	3.60V (min)
Current Rating	5 A
Capacitance	0.8 pF
Breakdown Voltage	7 V
Number of Channels	4 Channel
Number of Positions	10 Position
Forward Voltage	0.8 V
Power Dissipation	45 W
Data Rate	6.00 Gbps
Clamping Voltage	8 V
Peak Pulse Power	45 W
Min Breakdown Voltage	7 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.6 mm
Size-Width	1.1 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
