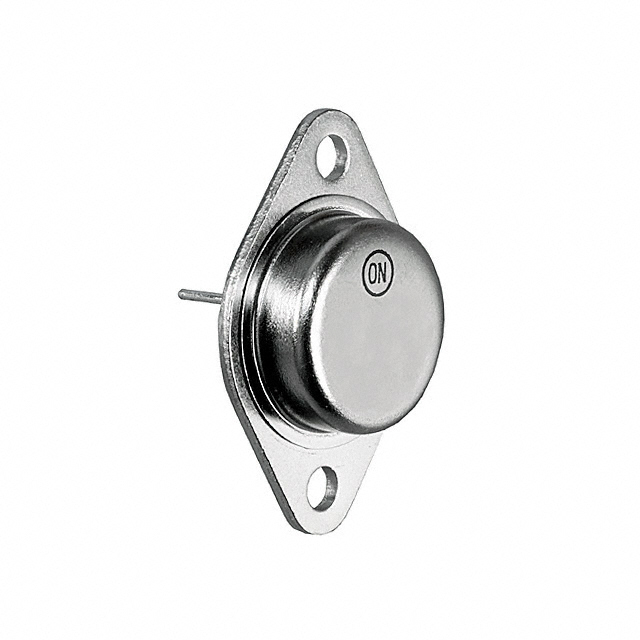

Image is for your reference only,please check specifications for details

Updated at 26/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

16 AMP COMPLEMENTARY SILICON POWER TRANSISTORS 250 VOLTS, 250 WATTS
The MJ21193 (PNP) and MJ21194 (NPN) utilize Perforated Emitter technology and are specifically designed for high power audio output, disk head positioners and linear applications.
Features
•Total Harmonic Distortion Characterized
•High DC Current Gain − hFE= 25 Min @ IC= 8 Adc
•Excellent Gain Linearity
•High SOA: 2.5 A, 80 V, 1 Second
•Pb−Free Packages are Available

Show

MJ21194 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-204-2
Voltage Rating (DC)	250 V
Current Rating	16.0 A
Polarity	NPN
Power Dissipation	250 W
Breakdown Voltage (Collector to Emitter)	250 V
Continuous Collector Current	16A
hFE Min	25
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	39.37 mm
Size-Width	26.67 mm
Size-Height	8.51 mm
Product Lifecycle Status	Unknown
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
