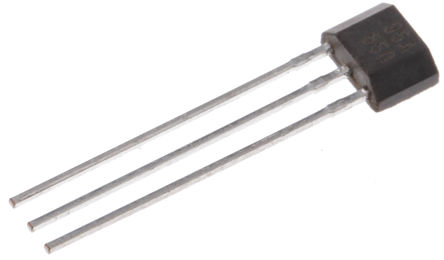

Image is for your reference only,please check specifications for details

SS495A - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC506640
Category:
Hall Effect Sensor
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
Honeywell Hall-effect Linear Sensor ICs: SS490 Series, Standard miniature ratiometric linear Hall-effect sensor IC, 3.125mV/G at 5V, Flat TO-92 package, Straight leads 14,99mm [0.59in] long, Available in bulk pack of 1000 units per bag
Stock Locations:
Availability:
10,237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SS495A is a high performance, miniature ratiometric linear (MRL) solid state hall effect sensor in 3 pin TO-92 package. This small and versatile sensor is operated by magnetic field from permanent magnet or an electromagnet. The ratiometric output voltage is set by supply voltage and varies in proportion to strength of magnetic field. The integrated circuitry provides increased temperature stability and sensitivity. Laser trimmed thin film resistors provide high accuracy (null to ±3%, sensitivity up to ±3%) and temperature compensation. The quad hall sensing element minimizes the effects of mechanical or thermal stress on output. The positive temperature coefficient of sensitivity (+0.02%/°C typical) helps compensate for negative temperature coefficients of low cost magnets providing robust design over wide temperature range.
Power consumption of 7mA at 5VDC for energy efficiency
Single current sinking or current sourcing output
Linear output for circuit design flexibility
Supply current of 8.7mA at 5VDC
Rail to rail operation provides more useable signal for higher accuracy
Operating temperature range from -40°C to 150°C
Supply voltage range from 4.5VDC to 10.5VDC
Sensitivity of 3.125mV/G
Linearity (% of span) of 1.0%
Response time of 3µs
Do not use this product as safety, emergency stop devices or in any other application where failure of product could result in personal injury.

Show

SS495A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Number of Contacts	3 Contact
Supply Voltage (DC)	5.00 V
Operating Voltage	4.5V ~ 10.5V
Output Voltage	0.4 VDC
Output Current	600 µA
Supply Current	8.7 mA
Number of Positions	3 Position
Input Current	7 mA
Switching Current	1.5 mA
Output Current (Max)	10 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 10.5V
Supply Voltage (Max)	10.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	4.06 mm
Size-Width	3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8542390000
ECCN Code	EAR99
HK STC License	NLR
