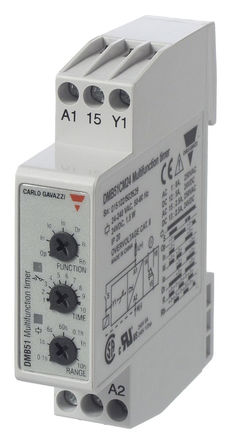

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DMB51CM24 is a Multifunction Timer with 7 knob-selectable functions and 7 knob-selectable time ranges within 0.1s and 100h. The time period begins as soon as the trigger contact is closed. At the end of the set delay time the relay operates and does not release until the trigger contact is closed again or the power supply is disconnected. If the trigger contact is closed before the end of the delay time, the device resets and a new time period starts. The relay operates and the time period begins as soon as the trigger contact is closed. The relay releases at the end of this period or when the power supply is disconnected. The relay operates again when the trigger contact is closed again. If the trigger contact is closed before the end of the delay time, the device resets and a new time period starts.
Selectable Time Range 0.1s to 100h
Automatic or Manual Start
0.2% Repeatability
SPDT Contact Configuration
Combined AC and DC Power Supply
LED Indication for Relay Status and Power Supply ON

Show

DMB51CM24 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Number of Contacts	2 Contact
Supply Voltage (DC)	24.0V (min)
Current Rating	5 A
Contacts Type	SPDT
Contact Current Rating	5.00 A
Current Rating (Max)	5 A
Coil Voltage (DC)	24 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage (Max)	240 VAC
Supply Voltage (Min)	24 V
Input Voltage	24 V
	Show
Size-Length	67.2 mm
Size-Width	17.5 mm
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
