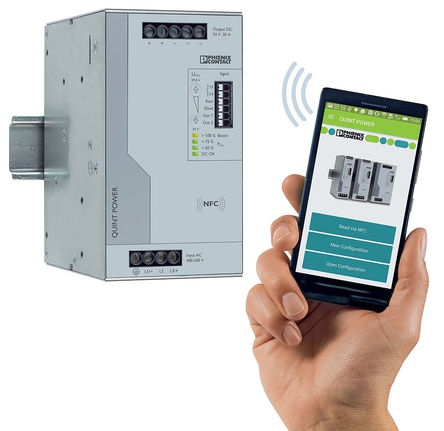

Image is for your reference only,please check specifications for details
- 2904602 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC42803003
-
Category:AC to DC Converter, AC/DC Converter
-
Datasheet:Datasheet 3D Model
-
Description:PHOENIX CONTACT 2904602 AC-DC DIN Rail Power Supply, IP20, Adjustable, Fixed, 1 Output, 85VAC, 264VAC, 480W, 24VDC
-
Stock Locations:
-
Availability:123 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 375.78
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **QUINT Power Supply Units – Maximum system availability with SFB technology**
- Compact power supply units of the new QUINT POWER generation maximize the availability of your system. With the SFB technology (Selective Fuse Breaking Technology), six times the nominal current for 12 ms, even the standard power circuit-breakers can now also be triggered reliably and quickly. Faulty current paths are switched off selectively, the fault is located and important system parts continue to operate. Comprehensive diagnostics are provided through constant monitoring of output voltage and current. This preventive function monitoring visualizes critical operating modes and reports them to the control unit before an error can occur.
- **Features**
- * Quick tripping of the standard power circuit-breakers using dynamic power reserve SFB technology
- * Reliable starting of difficult loads with static POWER BOOST power reserve
- * Preventive function monitoring
- * Can be used worldwide
- * High operating safety due to long mains buffering under full load and high MTBF (> 500,000 h)
- * Perfect functioning even in the event of a permanent phase failure
- * High surge voltage strength up to 6 kV (surge, asymmetric) using an integrated gas arrester
2904602 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 15 Pin |
| Power Rating | 480 W |
| Number of Outputs | 1 Output |
| Output Voltage | 24 VDC |
| Output Current | 20 A |
| Power Dissipation | 5000 mW |
| Output Power | 480 W |
| Isolation Voltage | 4 kV |
| Input Voltage (Max) | 240 VAC |
| Input Voltage (Min) | 85 VAC |
| Input Voltage (AC Max) | 264 v |
| Input Voltage (AC Min) | 85 v |
| Output Voltage (Max) | 29.5 VDC |
| Output Voltage (Min) | 24 VDC |
| Output Current (Max) | 20 A |
| Input Current (Min) | 6.8 A |
| Input Power (Max) | 480 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 25 ℃ |
| Input Voltage | 85VAC ~ 264VAC |
| Show | |
| Size-Length | 125 mm |
| Size-Width | 70 mm |
| Size-Height | 130 mm |
| Weight | 1.3 kg |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
