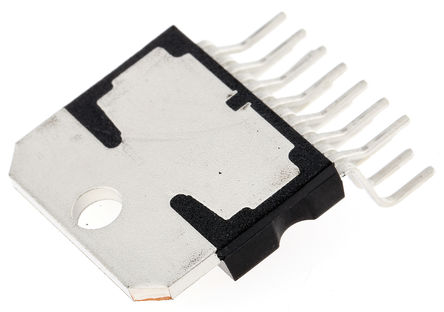

Image is for your reference only,please check specifications for details

TDA7295 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2467871
Category:
Audio Amplifier IC
Package:
Multiwatt-15
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TDA7295 Audio Power Amplifier, AB, 1Channel, 80W, ± 10V to ± 40V, Multiwatt, 15Pins
Stock Locations:
Availability:
324 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.97

Updated at 29/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TDA7295 is a monolithic integrated circuit DMOS Audio Amplifier with mute and standby intended for use as audio class AB amplifier in Hi-Fi field applications. The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.
Very high operating voltage range (±40V)
DMOS power stage
High output power
No switch ON/OFF noise
No Boucherot cells
Very low distortion
Very low noise
Short-circuit protection
Thermal shutdown

Show

TDA7295 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	15 Pin
Case/Package	Multiwatt-15
Supply Voltage (DC)	40.0V (max)
Output Current	6000 mA
Number of Circuits	2 Circuit
Number of Channels	1 Channel
Number of Positions	15 Position
Power Dissipation	50 W
Quiescent Current	30.0 mA
Output Power	80 W
Gain	80 dB
Input Offset Voltage	10 mV
Input Bias Current	500 nA
Output Current (Max)	6000 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	50000 mW
	Show
Size-Length	19.6 mm
Size-Width	5 mm
Size-Height	10.7 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
