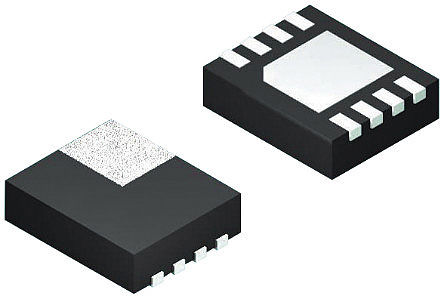

Image is for your reference only,please check specifications for details
- TPS62160DSGT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1463275
-
Category:DC to DC Converter
-
Package:WFDFN-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 3V to 17V Step Down Single-Out 0.9V to 6V 1A 8Pin WSON EP T/R
-
Stock Locations:
-
Availability:10,065 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.06
Updated at 26/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS62160DSGT is an easy-to-use synchronous step-down DC-to-DC Converter optimized for applications with high power density. A high switching frequency of typically 2.25MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by utilization of the DCS-Control™ topology. With its wide operating input voltage range of 3 to 17V, the device is ideally suited for systems powered from either a Li-ion or other battery as well as from 12V intermediate power rails. It supports up to 1A continuous output current at output voltages between 0.9 and 6V (with 100% duty cycle mode). Power sequencing is also possible by configuring the enable and open-drain power good pins. In power save mode, the device show quiescent current of about 17µA from VIN. Power save mode, entered automatically and seamlessly if the load is small, maintains high efficiency over the entire load range.
- Fixed output voltage versions
- Seamless power save mode transition
- Power good output
- 100% Duty cycle mode
- Short-circuit protection
- Over-temperature protection
- Pin-to-pin compatible with TPS62170 and TPS62125
- Green product and no Sb/Br
TPS62160DSGT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | WFDFN-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.9V ~ 6V |
| Output Current | 1 A |
| Number of Positions | 8 Position |
| Quiescent Current | 17.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 2.25 MHz |
| Topology | Buck |
| Input Voltage (Max) | 17 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 6 V |
| Output Voltage (Min) | 900 mV |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3 V |
| Input Voltage | 3V ~ 17V |
| Show | |
| Size-Length | 2.1 mm |
| Size-Width | 2.1 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
