LM348N TI - Operational Amplifiers(General Purpose)

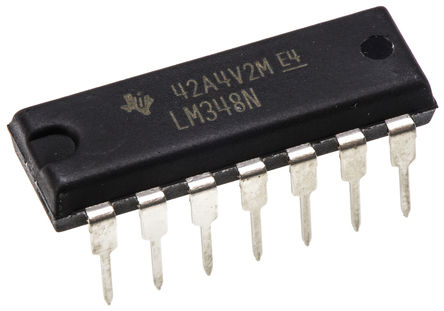

Image is for your reference only,please check specifications for details

LM348N - TI
Manufacturer:
TI
ManyChip's Part#:
MC673344
Category:
Operational Amplifiers(General Purpose)
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM348N – Операционный усилитель четырехтактного типа, 4 усилителя в комплекте, частота работы 1 МГц, напряжение питания 0.5 В/μs, диапазон сигналов от ±4В до ±18В, форм-фактор DIP, количество контактов 14.
Stock Locations:
Availability:
3,573 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.2

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

LM348N – это четырехтактный, независимый операционный усилитель высокого уровня усиления с внутренним компенсацией. Его рабочие характеристики схожи с характеристиками усилителя µA741. У этих усилителей низкий расход тока питания, а также низкие значения входного смещения и отклонений.
Характеристики работы µA741
Обычный расход тока питания – 0.6 мА на усилитель
Низкое напряжение входного смещения
Низкий входной смещенный ток
Выходной схематический тип AB
Защита от перегрузки входов и выходов
Может заменяться на стандартные усилители LM148, LM248 и LM348

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Voltage (DC)	18.0 V, 15.0 V
Output Current	25.0 mA
Supply Current	2.4 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	70 dB
Input Offset Drift	15.0 µV/K
Bandwidth	1 MHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	1 mV
Input Bias Current	30 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	70 dB
Supply Voltage (Max)	36 V
Supply Voltage (Min)	8 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
