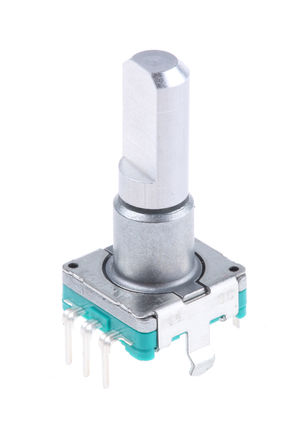

Image is for your reference only,please check specifications for details
- EC11E15244G1 - ALPS Electric
-
Manufacturer:ALPS Electric
-
ManyChip's Part#:MC736504
-
Category:Encoder
-
Package:Through Hole
-
Datasheet:Datasheet 3D Model
-
Description:ALPS EC11E15244G1 Incremental Rotary Encoder, Metal Shaft, With Pushbutton, 11mm, Vertical, 30 Detents, 15 Pulses
-
Stock Locations:
-
Availability:1,543 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.15
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EC11E15244G1 is a 11mm metal shaft type Vertical Encoder, 5VDC 10mA rated, flat actuator and 20mm in length, 30 detents, 15 pulses, with push on switch and 0.5mm travel of push-on switch.
- Compact and highly reliable, sliding contact type
- 15000 Cycles operating life
- 100MR Insulation resistance
EC11E15244G1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | Through Hole |
| Supply Voltage (DC) | 5.00V (max) |
| Operating Voltage | 5 VDC |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5 VDC |
| Supply Voltage (Max) | 5 VDC |
| Show | |
| Size-Length | 11.7 mm |
| Size-Height | 24.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
| HTS Code | 8543709650 |
| HK STC License | NLR |
