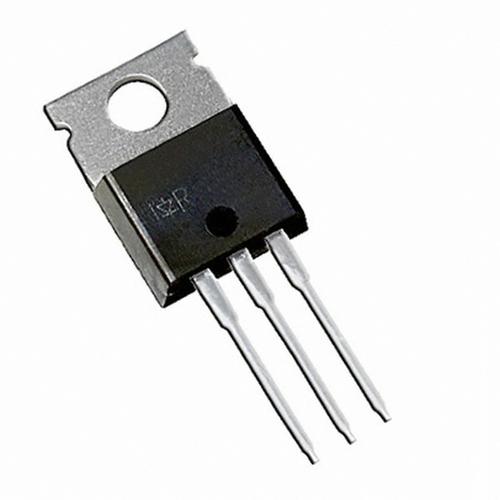

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRL3103 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220
Voltage Rating (DC)	30.0 V
Current Rating	64.0 A
Polarity	N-Channel
Power Dissipation	83.0 W
Part Family	IRL3103
Drain to Source Voltage (Vds)	30.0 V
Breakdown Voltage (Drain to Source)	30.0V (min)
Continuous Drain Current (Ids)	64.0 A
Rise Time	120 ns
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
