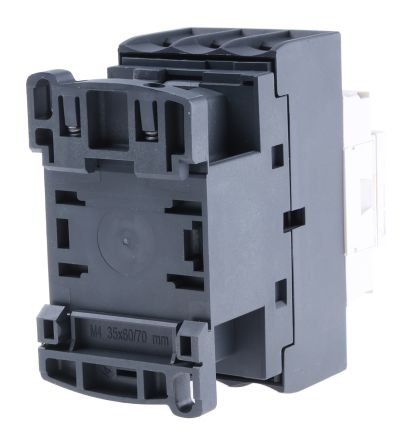

Image is for your reference only,please check specifications for details
- LC1D25E7 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC15915079
-
Category:Industrial Relay
-
Datasheet:Datasheet 3D Model
-
Description:SCHNEIDER ELECTRIC LC1D25E7 Contactor, 690VAC, 3Pole, 3PST-NO, DIN Rail, Panel, 40A, 48V
-
Stock Locations:
-
Availability:5 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 44.83
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Non-reversing contactor used for motor control, 75mm DIN rail mounting.
LC1D25E7 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Operating Voltage | 690 VAC |
| Current Rating | 25 A |
| Power Rating | 11 kW |
| Contacts Type | 3PST-NO |
| Contact Current Rating | 40 A |
| Coil Voltage | 48 VAC |
| Coil Voltage (AC) | 48 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -5 ℃ |
| Voltage Rating | 690VAC, 300VDC |
| Show | |
| Size-Length | 85 mm |
| Size-Width | 45 mm |
| Size-Height | 102 mm |
| Weight | 370 g |
| Operating Temperature | -5℃ ~ 60℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
