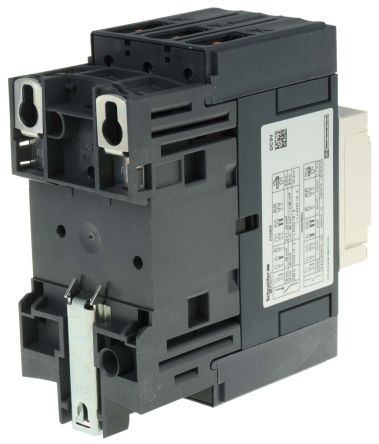

Image is for your reference only,please check specifications for details

LC1D40ABD - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC16991929
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
Contactor, Non-Reversing, 24VDC Coil, 40A, 3Pole, DIN Rail, TeSys D
Stock Locations:
Availability:
8 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 202.15

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LC1D40ABD from Schneider Electric is a TeSys D three pole contactor with normally open (NO) contacts. It is approved by UL 508, CSA C22.2, CCC, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1 and IEC 60947-5-1 standards. TeSys D contactors are designed for perfect integration in control systems. They can be used for switching equipments or relay coils, powering control equipments, powering signalling equipments and creating motor starters for any type of application.
AC-1 and AC-3 utilisation category
Rated operational voltage of 690VAC at 25Hz to 400Hz and 300VDC for power circuit
Rated operational current of 60A at <= 440VAC (AC-1) and 40A at <= 440VAC (AC-3 ) for power circuit
Motor power of 18.5KW at 380VAC to 400VAC, 50Hz/60Hz
Control circuit voltage of 24VDC
UL94 V-1 flammability
Operating ambient air temperature range from -5°C to 60°C
IP2x front face degree of protection conforming to IEC 60529 standard
Power dissipation per pole is 5.4W (AC-1) and 2.4W (AC-3)
Rated breaking capacity of 800A at 440V for power circuit conforming to IEC 60947 standard

Show

LC1D40ABD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Operating Voltage	690 VAC
Power Rating	18.5 kW
Contacts Type	3PST-NO
Contact Current Rating	60 A
Coil Voltage	24 VDC
Coil Voltage (DC)	24 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
	Show
Size-Length	122 mm
Size-Width	55 mm
Size-Height	122 mm
Weight	850 g
Operating Temperature	-25℃ ~ 55℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
