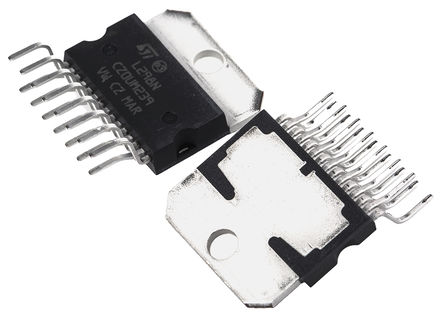

Image is for your reference only,please check specifications for details

L298N - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC17478
Category:
Motor Driver
Package:
Multiwatt-15
Datasheet:
Datasheet 3D Model
Description:
Motor Driver/Controller, Full Bridge, 4.5V to 7V supply, 46V/2A/4Outputs, Multiwatt-15
Stock Locations:
Availability:
9,921 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L298N is a high voltage, high current, dual full bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors
Low saturation voltage
Over temperature protection
High noise immunity

Show

L298N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	15 Pin
Case/Package	Multiwatt-15
Supply Voltage (DC)	46.0V (max)
Number of Outputs	4 Output
Output Voltage	46 V
Output Current	2 A
Number of Channels	2 Channel
Number of Positions	15 Position
Power Dissipation	25000 mW
Output Current (Max)	4 A
Operating Temperature (Max)	130 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	25000 mW
Supply Voltage	4.5V ~ 7V
Supply Voltage (Max)	7 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	19.6 mm
Size-Width	5 mm
Size-Height	10.7 mm
Operating Temperature	-25℃ ~ 130℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
HK STC License	NLR
