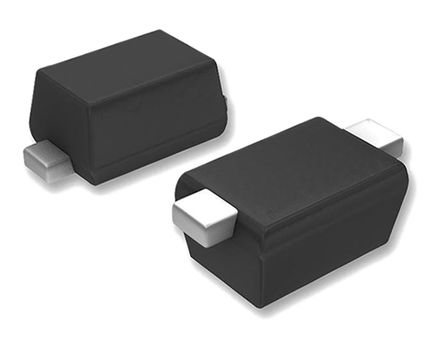

Image is for your reference only,please check specifications for details

BAT54XV2T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC84809
Category:
Schottky Diode
Package:
SOD-523-2
Datasheet:
Datasheet 3D Model
Description:
ON Semi BAT54XV2T1G; SMT Schottky Diode; 30V 200mA; 5ns; 2Pin SOD-523
Stock Locations:
Availability:
1,646 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.02

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT54XV2T1G is a 2-pin 30V Schottky Diode designed for high speed switching applications, circuit protection and voltage clamping. Extremely low forward voltage reduces conduction loss. It is excellent for hand held applications where space is limited.

Show

BAT54XV2T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523-2
Voltage Rating (DC)	30.0 V
Current Rating	200 mA
Capacitance	10.0 pF
Halogen Free Status	Halogen Free
Output Current	≤200 mA
Load Current	0.2 A
Number of Positions	2 Position
Forward Voltage	800mV @100mA
Polarity	Standard
Power Dissipation	200 mW
Thermal Resistance	635 ℃/W
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.6 mm
Material	Silicon
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
