Description

Product Details

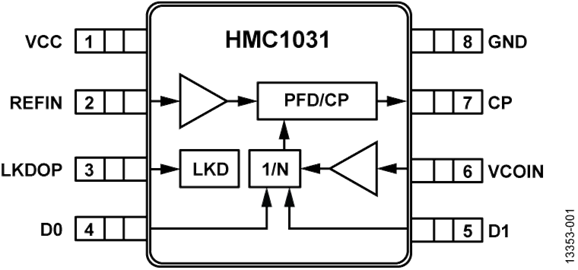

Together with an external loop filter and a voltage controlled crystal oscillator (VCXO), the HMC1031 forms a complete clock generator solution targeted at low frequency jitter attenuation and reference clock generation applications.
The HMC1031 features a low power integer N divider, support-ing divide ratios of 1, 5, and 10, which is controlled via external hardware pins and requires no serial port.
The integrated phase detector and charge pump are capable of operating at up to 140 MHz, and a maximum VCXO input of 500 MHz ensures frequency compliance with a wide variety of system clocks and VCXOs.
Additional features include an integrated lock detect indicator available on a dedicated hardware pin, and a built in power-down mode.
The HMC1031 is housed in an 8-lead MSOP package.
Applications
Low jitter clock generation
Low bandwidth (BW) jitter attenuation
Low frequency phase-locked loops PLL
Frequency translation
Oven controlled crystal oscillator (OCXO) frequency multiplier
Phase lock clean high frequency references to 10 MHz equipment
### Features and Benefits
Low current consumption: 195 mA typical
High phase frequency detector rate: 140 MHz
Hardware pin-programmable clock multiplication ratios: x1/ x5/ x10
Lock detect indicator
Power down mode (0.8 μA typical)
8-lead MSOP package: 4.9 mm × 3.0 mm

Show

HMC1031 Specifications
