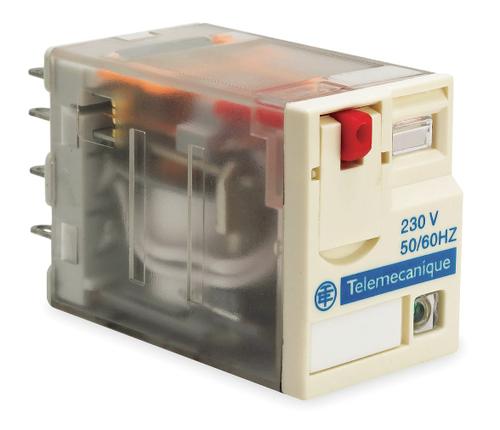

Image is for your reference only,please check specifications for details

RXM4AB2BD - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC8321444
Category:
Power Relay
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Relay; 4 C/O Cntcts; 24VDC Ctrl; 250V Swtchng; 6A; Pushbutton; w/LED; Flat Pin; Plug-In
Stock Locations:
Availability:
22 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.56

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**RXM Series Miniature Relays with LED**
The compact Zelio RXM miniature relays with LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC.

Show

RXM4AB2BD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Plug In
Case/Package	-
Current Rating	6 A
Contacts Type	4PDT
Coil Voltage	24 VDC
Coil Current	10 mA
Coil Resistance	650 Ω
Carry Current	6.00 A
Coil Voltage (DC)	24 V
Coil Power	900 mW
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	21 mm
Size-Height	27 mm
Contact Material	Silver
Operating Temperature	-40℃ ~ 55℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
