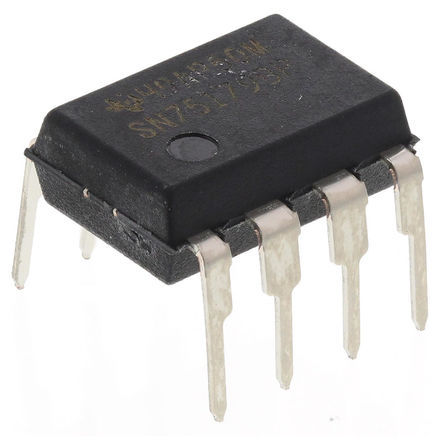

Image is for your reference only,please check specifications for details

SN75179BP - TI
Manufacturer:
TI
ManyChip's Part#:
MC3476434
Category:
Interface IC, Interface Controller
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
RS-485 Differential Driver And Receiver Pair Single Transmitter/Receiver RS-485 8Pin PDIP Tube
Stock Locations:
Availability:
176 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.87

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN75179BP is a Differential Driver and Receiver Pair designed for balanced transmission-line applications and meets TIA/EIA-422-B, TIA/EIA-485-A and ITU recommendation V.11. It is designed to improve the performance of full-duplex data communications over long bus lines. The SN75179B driver output provides limiting for both positive and negative currents. The receiver features high input impedance, input hysteresis for increased noise immunity and input sensitivity of ±200mV over a common-mode input voltage range. The driver provides thermal shutdown for protection from line fault conditions. Thermal shutdown is designed to occur at a junction temperature of approximately 150°C. The SN75179B is designed to drive current loads of up to 60mA maximum.
Positive and negative current limiting
Driver thermal shutdown protection
Low power requirements

Show

SN75179BP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	4.75V (min)
Supply Current	70 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Drivers Per Package	1
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
