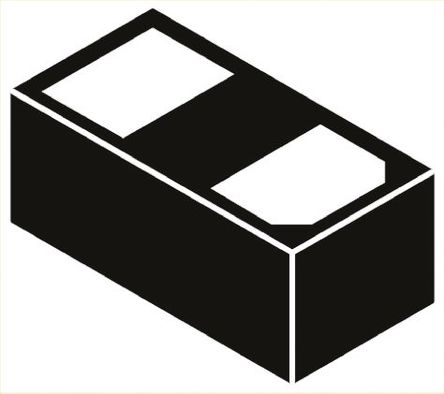

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Save yourself hassle and protect your electronic components by installing this tvs ESD8472MUT5G ESD protection device from ON Semiconductor. This ESD diode has a maximum ESD protection device voltage of ±20@Air Gap/±20@Contact Disc kV. This device"s maximum clamping voltage is 20 V. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration.

Show

ESD8472MUT5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DFN-2
Operating Voltage	5.3 V
Capacitance	0.3 pF
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Power Dissipation	300 mW
Clamping Voltage	20 V
Test Current	1 mA
Max Breakdown Voltage	12 V
Peak Pulse Power	0.3 W
Min Breakdown Voltage	7 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	0.66 mm
Size-Width	0.36 mm
Size-Height	0.28 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
