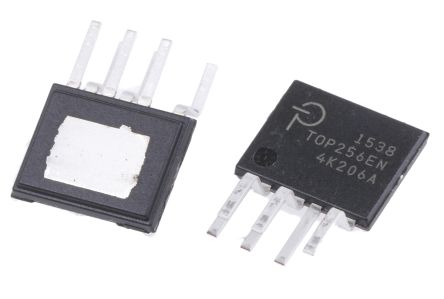

Image is for your reference only,please check specifications for details

TOP256EN - Power Integrations
Manufacturer:
Power Integrations
ManyChip's Part#:
MC2683577
Category:
AC to DC Converter, AC/DC Power Module
Package:
eSIP-7C
Datasheet:
Datasheet 3D Model
Description:
AC-DC Off-Line Switcher IC, TOPSwitch-HX, Flyback, 85VAC - 265VAC, 66kHz, 4.08A out, 119W, SIP-7
Stock Locations:
Availability:
223 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.72

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TOP256EN is an enhanced EcoSmart™, Integrated Off-line Switcher with 30W peak, advanced feature set and extended power range. TOPSwitch-HX cost effectively incorporates a 700V power MOSFET, high voltage switched current source, PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.
Multi-mode operation maximizes efficiency at all loads
Low thermal impedance junction-to-case (2°C per watt)
Low height is ideal for adapters where space is limited
Simple mounting using a clip to aid low cost manufacturing
Line under-voltage (UV) detection prevents turn-off glitches
Line overvoltage (OV) shutdown extends line surge limit
Accurate programmable current limit
Optimized line feed-forward for line ripple rejection
Half frequency option for video applications
Frequency jittering reduces EMI filter cost
Heat sink is connected to SOURCE for low EMI
Fully integrated soft-start for minimum start-up stress
Energy efficient over entire load range
Less than 200mW at 230VAC, no load consumption
Standby power for 1W input

Show

TOP256EN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	eSIP-7C
Frequency	66.0 kHz
Power Rating	119 W
Number of Outputs	1 Output
Output Voltage	700 V
Output Current	4.08 A
Breakdown Voltage	700 V
Number of Positions	7 Position
Power Dissipation	40.0 W
Output Power	86 W
Switching Frequency	66kHz, 132kHz
Duty Cycle	78 %
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Maximum Duty Cycle	83 %
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	10.24 mm
Size-Width	2.06 mm
Size-Height	8.25 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
