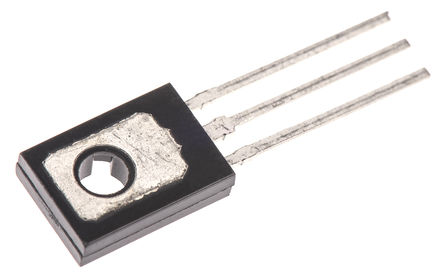

Image is for your reference only,please check specifications for details

2SD882 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC316258
Category:
BJT Transistor, BJT
Package:
TO-126-3
Datasheet:
Datasheet 3D Model
Description:
2SD882 Series NPN 30V 3A Through Hole Medium Power Transistor - SOT-32
Stock Locations:
Availability:
186 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 2SD882 is a 30V NPN medium power Transistor manufactured by using planar technology resulting in rugged high performance devices. The complementary PNP type is 2SB772. It is ideal for voltage regulation, relay driver, generic switch, audio power amplifier and DC-DC converter applications.
High current
Low saturation voltage
6A Peak collector current
60V Collector to base voltage
1A Base current
10°C/W Thermal resistance, junction to case

Show

2SD882 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Frequency	90 MHz
Voltage Rating (DC)	30.0 V
Current Rating	3.00 A
Power Rating	12.5 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	12.5 W
Breakdown Voltage (Collector to Emitter)	30 V
hFE Min	100 @100mA, 2V
Input Power (Max)	12.5 W
DC Current Gain (hFE)	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	12500 mW
	Show
Size-Length	7.8 mm
Size-Width	2.7 mm
Size-Height	10.8 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
