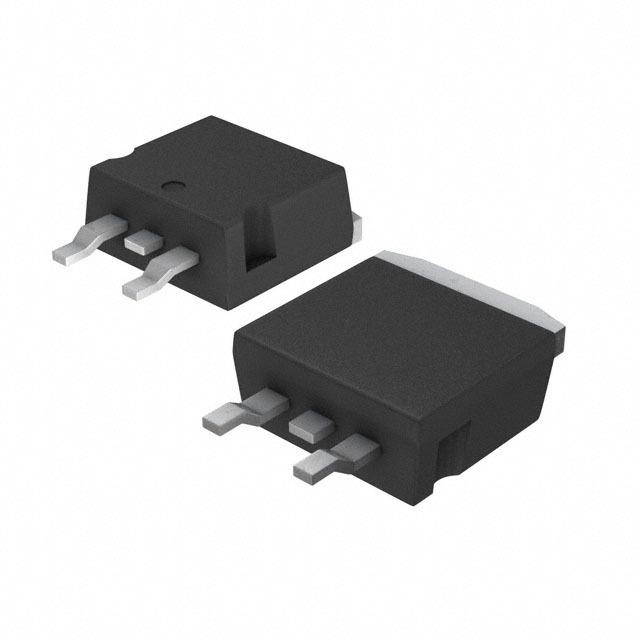

VNB14NV04 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC150751230
Category:
FET Driver
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
Power Switch Lo Side 1Out 12A 0.035Ω Automotive 3Pin(2+Tab) D2PAK Tube
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.17

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The VNB14NV04, VND14NV04, VND14NV04-1 and VNS14NV04 are monolithic devices made using STMicroelectronics VIPower™ M0 technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shutdown, linear current limitation and
overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.
■ Linear current limitation
■ Thermal shutdown
■ Short circuit protection
■ Integrated clamp
■ Low current drawn from input pin
■ Diagnostic feedback through input pin
■ ESD protection
■ Direct access to the gate of the Power MOSFET (analog driving)
■ Compatible with standard Power MOSFET

Show

VNB14NV04 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Outputs	1 Output
Drain to Source Resistance (on) (Rds)	35.0 mΩ
Polarity	N-Channel
Power Dissipation	74.0 W
Breakdown Voltage (Drain to Source)	40.0 V
Continuous Drain Current (Ids)	12.0 A
Output Current (Max)	12 A
Number of Inputs	1 Input
Power Dissipation (Max)	74000 mW
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
