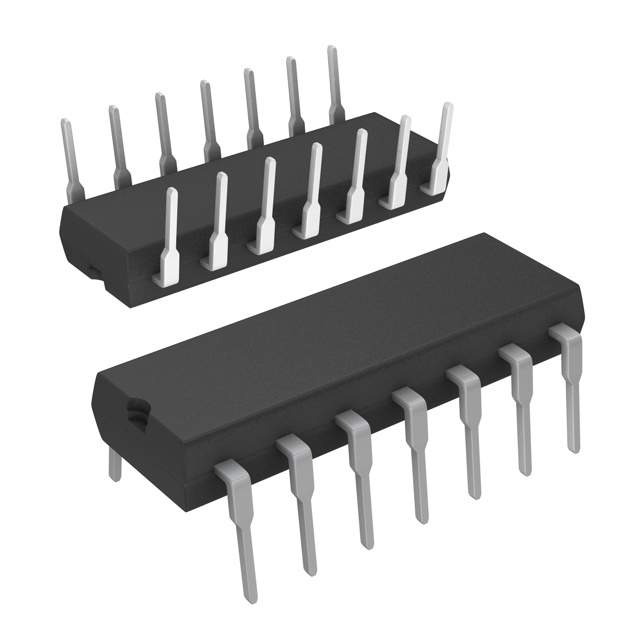

Image is for your reference only,please check specifications for details
- CD40106BCN - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC109991004
-
Category:Logic Control, Logic Gate IC
-
Package:DIP-14
-
Datasheet:Datasheet 3D Model
-
Description:Inverter Schmitt Trigger 6Element CMOS 14Pin PDIP Rail
-
Stock Locations:
-
Availability:293 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.72
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Description
- The CD40106BC Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N and P-channel enhancement transistors.
- Features
- ■Wide supply voltage range: 3V to 15V
- ■High noise immunity: 0.7 VDD(typ.)
- ■Low power TTL compatibility:
- Fan out of 2 driving 74L or 1 driving 74LS
- ■Hysteresis: 0.4 VDD(typ.),
- 0.2 VDD guaranteed
- ■Equivalent to MM74C14
- ■Equivalent to MC14584B
CD40106BCN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | DIP-14 |
| Supply Voltage (DC) | 15.0 V |
| Output Current | 8.80 mA |
| Number of Circuits | 6 Circuit |
| Number of Gates | 6 Gate |
| Number of Inputs | 6 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 15V |
| Show | |
| Size-Height | 3.56 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
