Description

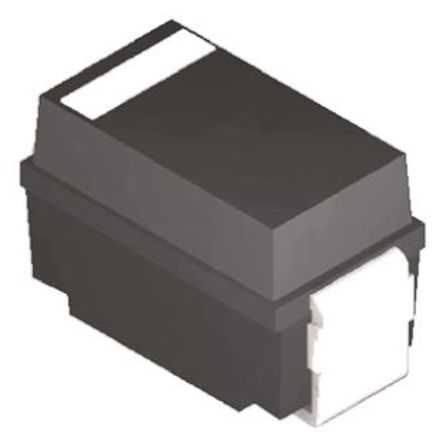

The MURA120T3G is a surface-mount ultra-fast Power Rectifier with moulded epoxy case. It is ideally suited for high voltage, high frequency rectification or as free-wheeling and protection diodes in surface-mount applications where compact size and weight are critical to the system.
Polarity band indicates cathode lead
All external surfaces corrosion-resistant and terminal leads are readily solderable
Small compact surface-mountable package with j-bend leads
Rectangular package for automated handling
High temperature glass-passivated junction
Low forward voltage drop

Show

MURA120T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Voltage Rating (DC)	200 V
Current Rating	2.00 A
Halogen Free Status	Halogen Free
Output Current	≤1.00 A
Forward Voltage	875 mV
Polarity	Standard
Thermal Resistance	24℃/W (RθJL)
Reverse recovery time	35 ns
Max Breakdown Voltage	200 V
Forward Current	2 A
Max Forward Surge Current (Ifsm)	40 A
Maximum Forward Voltage (Max)	875 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	4.32 mm
Size-Width	2.6 mm
Size-Height	2 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
