TL750L05CLP - TI
Manufacturer:
TI
ManyChip's Part#:
MC48953336
Category:
Voltage Regulator
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:

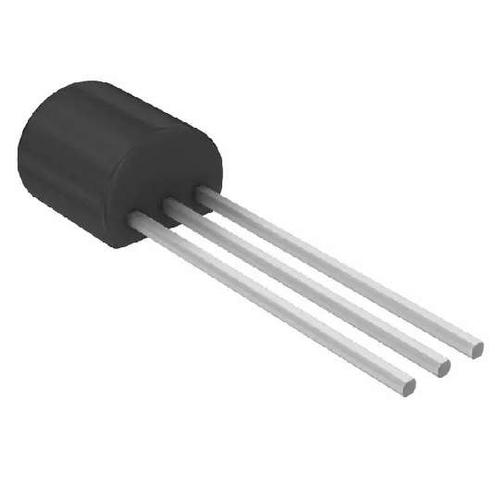

TEXAS INSTRUMENTS TL750L05CLP Fixed LDO Voltage Regulator, 6V to 26V, 600mV Dropout, 5Vout, 150mAout, TO-92-3
Stock Locations:
Availability:
9,692 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.41

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL750L and TL751L series of fixed-output voltage regulators offer 5-V, 8-V, 10-V, and 12-V options. The TL751L series also has an enable (ENABLE) input. When ENABLE is high, the regulator output is placed in the high-impedance state. This gives the designer complete control over power up, power down, or emergency shutdown.
The TL750L and TL751L series are low-dropout positive-voltage regulators specifically designed for battery-powered systems. These devices incorporate overvoltage and current-limiting protection circuitry, along with internal reverse-battery protection circuitry to protect the devices and the regulated system. The series is fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current during full-load conditions makes these devices ideal for standby power systems.

Show

TL750L05CLP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	26.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	26.0V (max)
Output Voltage	5 V
Output Current	150 mA
Supply Current	2mA ~ 12mA
Number of Positions	3 Position
Quiescent Current	1 mA
Output Capacitor Type	Capacitor Free
voltage rating	600 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	26 V
Input Voltage (Min)	6 V
Output Voltage (Min)	5 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±4 %
Input Voltage	6V ~ 26V
	Show
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
