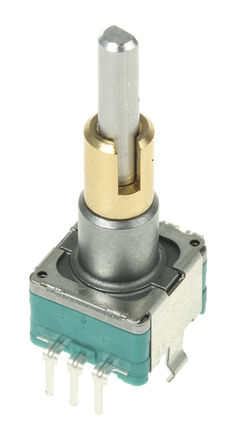

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EC11EBB24C03 is a 11mm Metal Shaft Incremental Encoder with dual shaft structure. It features 30 detents, 15 pulses and flat slotted actuator configuration. It is suitable for use with FP-TV, DVD player, personal audio home appliances and car AV equipment applications.
- Momentary push switch
- Single pole and single throw (push-on) contact arrangement
- 25mm Inner shaft and 15mm outer shaft actuator
- 15000 Cycles operating life
- 100MR/250VDC Minimum insulation resistance
- -40 to +85°C Operating temperature
EC11EBB24C03 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | Through Hole |
| Supply Voltage (DC) | 5.00V (max) |
| Operating Voltage | 5 VDC |
| Number of Channels | 2 Channel |
| Number of Detents | 30 Detent |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5 VDC |
| Supply Voltage (Max) | 5 VDC |
| Show | |
| Size-Height | 33 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
| HTS Code | 8543709650 |
| ECCN Code | EAR99 |
