Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

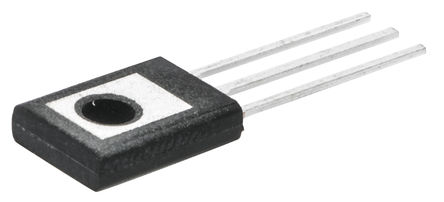

Case/Package | TO-126-3 |
Number of Contacts | 3 Contact |
Voltage Rating (DC) | 600 V |
Current Rating | 4.00 A |
Halogen Free Status | Halogen Free |
Number of Positions | 3 Position |
Forward Voltage | 2.2 V |
Slew Rate | 8.00 V/μs |
Holding Current | 6 mA |
Thermal Resistance | 3℃/W (RθJC) |
Forward Current | 4 A |
Holding Current (Max) | 3 mA |
Operating Temperature (Max) | 110 ℃ |
Operating Temperature (Min) | -40 ℃ |
Junction Temperature | -40℃ ~ 110℃ |
Junction Temperature (Max) | 110 ℃ |
Show | |
Size-Length | 7.493 mm |
Size-Width | 2.66 mm |
Size-Height | 11.04 mm |
Operating Temperature | -40℃ ~ 110℃ |
Product Lifecycle Status | Active |
Packaging | Bulk |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
