Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

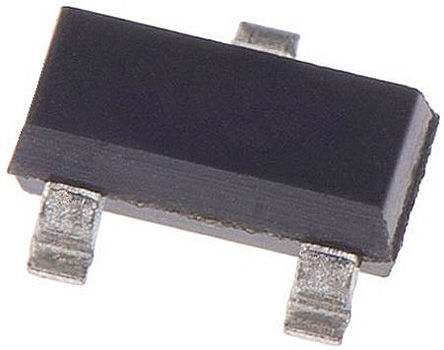

Case/Package | SOT-23-3 |
Frequency | 300 MHz |
Voltage Rating (DC) | 40.0 V |
Current Rating | 200 mA |
Power Rating | 0.3 W |
Number of Positions | 3 Position |
Polarity | NPN |
Power Dissipation | 225 mW |
Breakdown Voltage (Collector to Emitter) | 40 V |
Continuous Collector Current | 0.2A |
hFE Min | 100 @10mA, 1V |
Input Power (Max) | 300 mW |
DC Current Gain (hFE) | 300 |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Junction Temperature | -55℃ ~ 150℃ |
Power Dissipation (Max) | 300 mW |
Show | |
Size-Length | 2.9 mm |
Size-Width | 1.3 mm |
Size-Height | 0.94 mm |
Material | Silicon |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2016/06/20 |
ECCN Code | EAR99 |
HK STC License | NLR |
