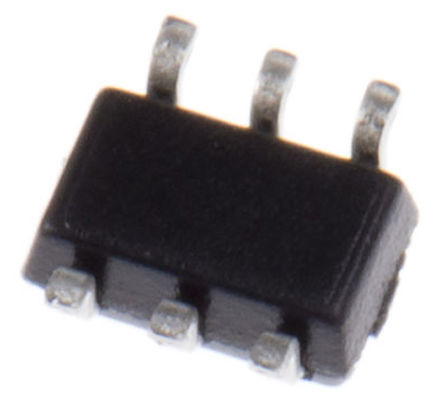

SMF05CT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC71542
Category:
TVS Diode
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
TVS Diode, TRANSZORB SMCJ Series, Unidirectional, 5V, 12.5V, SC-88, 6Pins
Stock Locations:
Availability:
1,988 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SMF05CT1G is a 5-line Transient Voltage Suppressor Array designed for application requiring transient voltage protection capability. It is intended for use in over-transient voltage and ESD sensitive equipment such as printers, networking communication and other applications.
100W Peak power dissipation
5V Maximum reverse working voltage
8A Maximum peak pulse current
Flammability rating of UL94V-0

Show

SMF05CT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Voltage Rating (DC)	5.00 V
Capacitance	130 pF
Power Rating	100 W
Breakdown Voltage	6.7 V
Number of Circuits	5 Circuit
Number of Positions	6 Position
Power Dissipation	100 W
Clamping Voltage	12.5 V
Test Current	1 mA
Max Breakdown Voltage	7.2 V
Peak Pulse Power	100 W
Min Breakdown Voltage	6.2 V
Reverse Breakdown Voltage	6.2 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.2 mm
Size-Width	1.25 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
