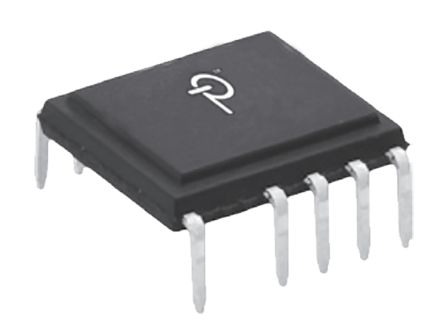

- TOP264VG - Power Integrations
-
Manufacturer:Power Integrations
-
ManyChip's Part#:MC10162066
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:DIP-12
-
Datasheet:Datasheet 3D Model
-
Description:AC-DC Converter IC, TOPSwitch-JX Family, Flyback, 85VAC - 265VAC, 34W, DIP-12
-
Stock Locations:
-
Availability:2,100 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.87
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TOP264VG is a 21W integrated Off-Line Switcher with EcoSmart™ technology for highly efficient power supplies. This enhanced EcoSmart™ switcher incorporates a 725V power MOSFET, high-voltage switched current source, multi-mode PWM control and oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.
- Energy efficient over entire load range
- Line under-voltage detection prevents turn-OFF glitches
- Line over-voltage shutdown extends line surge limit
- Accurate thermal shutdown with large hysteresis
TOP264VG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | DIP-12 |
| Power Rating | 34 W |
| Number of Outputs | 1 Output |
| Output Voltage | 5 VDC |
| Output Current | 7 A |
| Breakdown Voltage | 725 V |
| Number of Positions | 11 Position |
| Switching Frequency | 66kHz, 132kHz |
| Duty Cycle | 78 % |
| Input Voltage (Max) | 265 VAC |
| Input Voltage (Min) | 85 VAC |
| Input Voltage (AC Max) | 265 v |
| Input Voltage (AC Min) | 85 v |
| Output Voltage (Max) | 5 VDC |
| Output Current (Max) | 7 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 85VAC ~ 265VAC |
| Show | |
| Size-Length | 10.16 mm |
| Size-Width | 8.89 mm |
| Size-Height | 2.34 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HK STC License | NLR |
