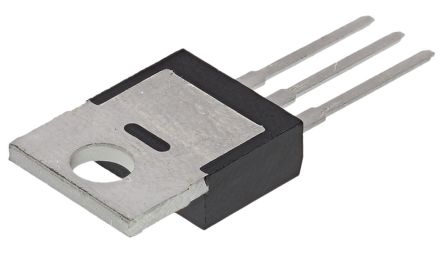

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FQP30N06L is a QFET® N-channel enhancement mode Power MOSFET is produced using planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance and to provide superior switching performance and high avalanche energy strength.
Low gate charge
100% Avalanche tested
Low crss (typical 50pF)
±20V Gate-source voltage

Show

FQP30N06L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	27 mΩ
Power Dissipation	79 W
Threshold Voltage	2.5 V
Drain to Source Voltage (Vds)	60 V
Rise Time	210 ns
Input Capacitance (Ciss)	800pF @25V(Vds)
Input Power (Max)	79 W
Fall Time	110 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	79 W
	Show
Size-Length	10.67 mm
Size-Width	4.7 mm
Size-Height	16.3 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
